An array is a list of items that are of the same basic type, they can be numbers, booleans, or strings, for example. You can add items or take away as you please, so the length of the list can grow and shrink. Another important trait of an array is that the items have their own position (index) it in.
- In JSON, an array is denoted by the presence of square brackets: [ ]
- Relational data tables are also considered an array - unlike the contact database which is flat structure.
To reference items in an array, use a foreach
loop or place an index
in the placeholder.
- A loop will cycle through each array index in order to display multiple items. All code inside the foreach will be duplicated and personalized for each index (item) in the array.
Cart abandon foreach loop:{% foreach item in event.predict_cart %} INSERT CART ITEM ROW {% endforeach %}
- Indexing the placeholder will only return personalization for the designated item in the array. The first item is always [0] and ascends from there. The index is placed on the array object, not at the end of the placeholder. You can see this marked in red in JSON, denoted by square brackets and in RD, the table. Cart abandon indexed placeholder:
{{event.predict_cart[0].image}}
Arrays in the VCE editor

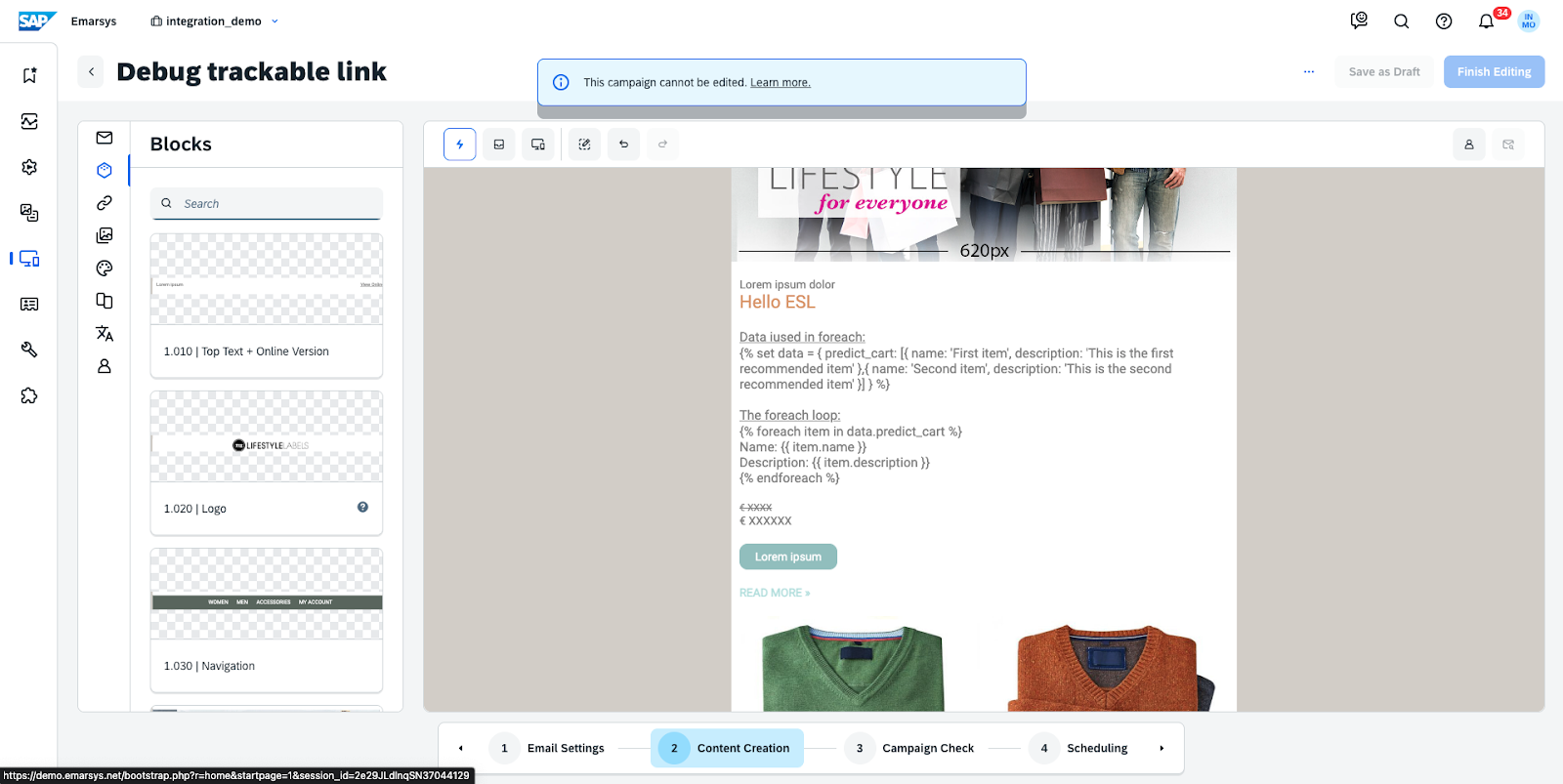

This is what you see in the VCE editor when adding the given foreach loops:

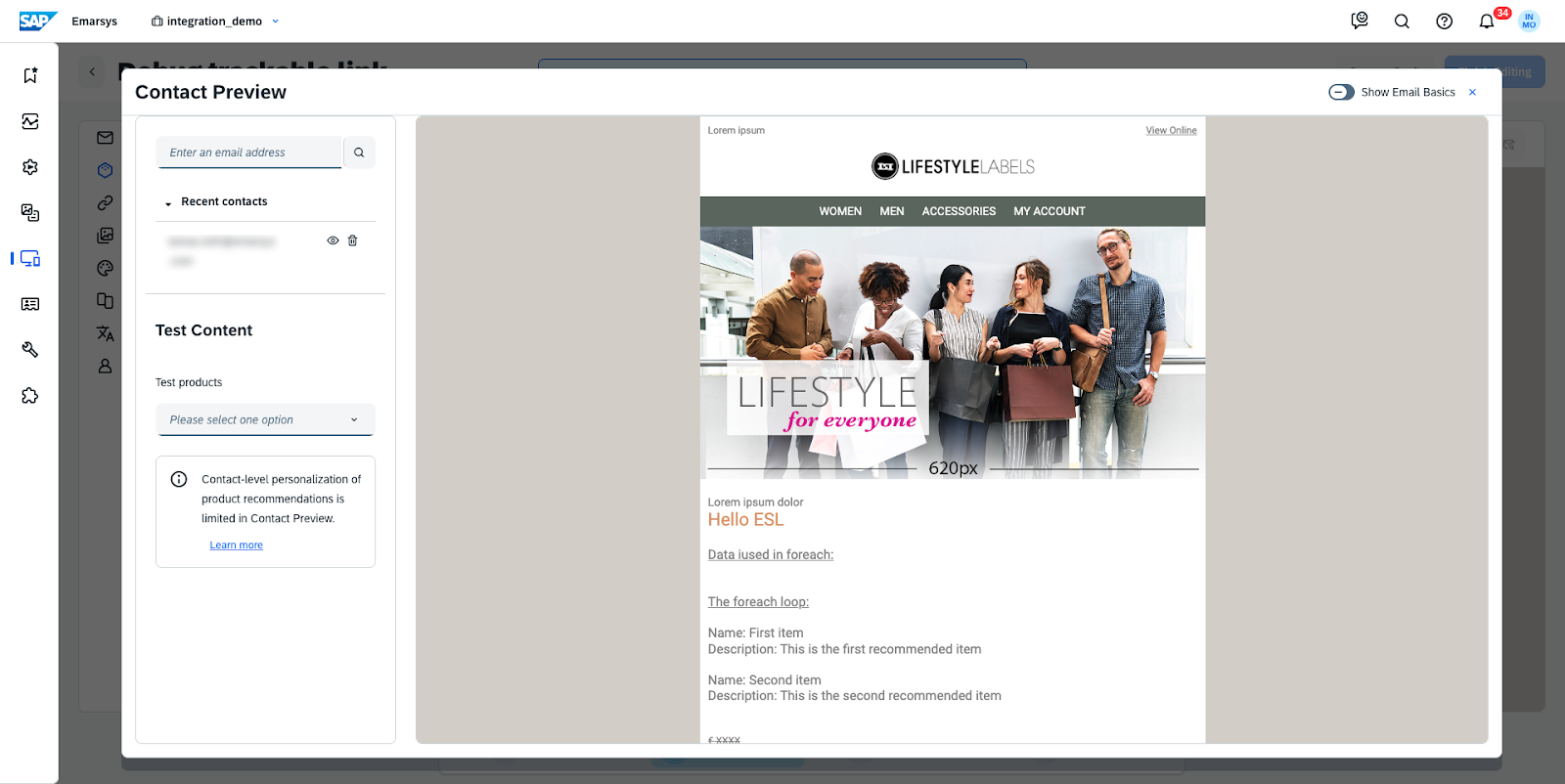

This is what you can expect in the Contact Preview, reflecting what your users will see.
(The set command will not be visible here):
Displaying purchased products using arrays and loops
Here we examine a usecase where you pull data from an array that stores the items purchased.
You want to trigger a standard email response to a purchase, listing the products bought. But you don’t know how many products there will be, so you need a dynamic section in the email that can repeat as many times as there are products to list.
For this, we can use an array to store all the products bought, and a foreach loop to process the data. The foreach loop will perform the same action on every entry in the array, until there is no more data to display.
The way this works for the API is that we declare an array in the JSON, and use a foreach loop to loop through all the different things in the array.
Following is the HTML source of the example mail:
<html>
<head>
<title>API Exercise 2 Example</title>
</head>
<body>
<h2>Exercise 2 - For Each Loop</h2>
<p>
Dear {{event.firstName}},<br>
Please find your order details below:
</p>
{% foreach item in event.orderDetails %}
<ul>
<li>Ordernumber: {{item.orderNumber}}</li>
<li>Product: {{item.productName}}</li>
<li>Quantity: {{item.Quantity}}</li>
<li>Price: {{item.Price}}</li>
</ul>
{% endforeach %}
</body>
</html>
We can see that the first name of the user is a regular placeholder, defined by {{event.firstName}}.
Then the foreach statement starts. The syntax is slightly different here from a usual placeholder. Instead of double curly brackets, we now use one curly bracket and one percentage character.
I find the difference between when to use {{ }} and when to use {% %} easiest explained by:
- {{ say something }} (like personalization)
- {% do something %} (like an IF statement or a foreach loop)
Let’s look at the architecture of the foreach statement for a moment.
- {% foreach opens the foreach statement and indicates a loop is about to start
- item is the key that is used for the array that is about to be defined
- in Indicates that we are looking for each entry of the key called item, inside the array
- event. is the key used for the JSON body. As the array itself is part of the JSON body, it must be prefixed with ‘event.’.
- orderDetails is the name of the array
- endforeach %} closes the foreach statement
Each entry of the array must be prefixed with the key of the array, which can be anything. In this example we have declared the array’s key as item, which is why you see item. before each entry that is part of the array.
The array itself is part of the JSON body, which is why it must be prefixed using event., which is the pre-defined key for any JSON objects that are part of the JSON object itself.
We can now pass multiple objects through the JSON, and the foreach loop will display each object inside the array. Here is an example we could use:
{
"key_id": "3",
"contacts":
[
{
"external_id": "elston.gunn@example.com",
"data":
{
"firstName": "Elston",
"orderDetails":
[
{
"orderNumber": 1223456,
"Product": "Football",
"Quantity": "1",
"Price": "€25,-"
},
{
"orderNumber": 27346575,
"Product": "Garden Furniture Set",
"Quantity": "1",
"Price": "€685.95"
}
]
}
},
{
"external_id": "tedham.porterhouse@example.com",
"data":
{
"firstName": "Tedham",
"orderDetails":
[
{
"orderNumber": 1223456,
"Product": "Vacuum Cleaner",
"Quantity": "1",
"Price": "€85.95"
},
{
"orderNumber": 27346575,
"Product": "Washing Tabs",
"Quantity": "3",
"Price": "€15,-"
}
]
}
}
]
}
Multi-dimensional array
To add an extra layer of complexity, we’ve assumed multiple contacts using the same account. This means the above example needs to use an array within an array (we call this a multi-dimensional array). One array indicates the contacts (recipients) and the other array indicates the order details that go with each contact. In this way we can list both multiple contacts and multiple orders for each of them.
Let’s look at what is going on in detail:
- The first curly bracket { at the top opens the JSON object
- key_id is defined as the email address
- We use the key-word contacts to indicate that more than one contact is going to be used in this payload
- The square bracket [ opens the array, which we need because the order details will contain multiple items
- The second curly bracket { opens the object for the recipient. Here, we declare the first contact
- external_id is the contact identifier (defined above as the email address)
- We now declare the data object, which contains any placeholders that are not part of the array, in this case the user’s first name. It is not an array, as it’s a single value
- orderDetails is the name of the array, and we open it using an opening square bracket [
- We now open the first object inside the array using an opening curly bracket {
- Next, we declare all the variables that contain the values of the placeholders we are using inside the orderDetails array. We close this with another curly bracket }
- The second object is declared inside the array, also enclosed in curly brackets { }
- We close the array with a square bracket ], as that’s all for this particular user
- We also close the data and external_id objects for this recipient with two more curly brackets }
- And finally, we repeat the external_id and data objects for the second recipient
Triggering this will trigger two emails, one to each recipient, with their respective order details populated in the section you have defined, for example:
Dear Elston,
Please find your order details below:
- Order number: 1223456
- Product: Football
- Quantity: 1
- Price: €25
- Order number: 27346575
- Product: Garden furniture set
- Quantity: 1
- Price: €685.95
One added benefit of this method is that since these two emails are triggered in one API call, you can send more traffic through the API without hitting the rate limit (default limit is 1,000 calls per minute).
Multi-dimensional array in the VCE
Data we trigger the emails with:
{ "key_id": 3, "contacts": [ { "external_id": "test.email.1@emarsys.com", "data": { "orderNumber": 1223456, "product": "Football", "quantity": 1, "price": 25 } }, { "external_id": "test.email.2@emarsys.com", "data": { "orderNumber": 27346575, "product": "Garden furniture set", "quantity": 1, "price": 685.95 } } ] }

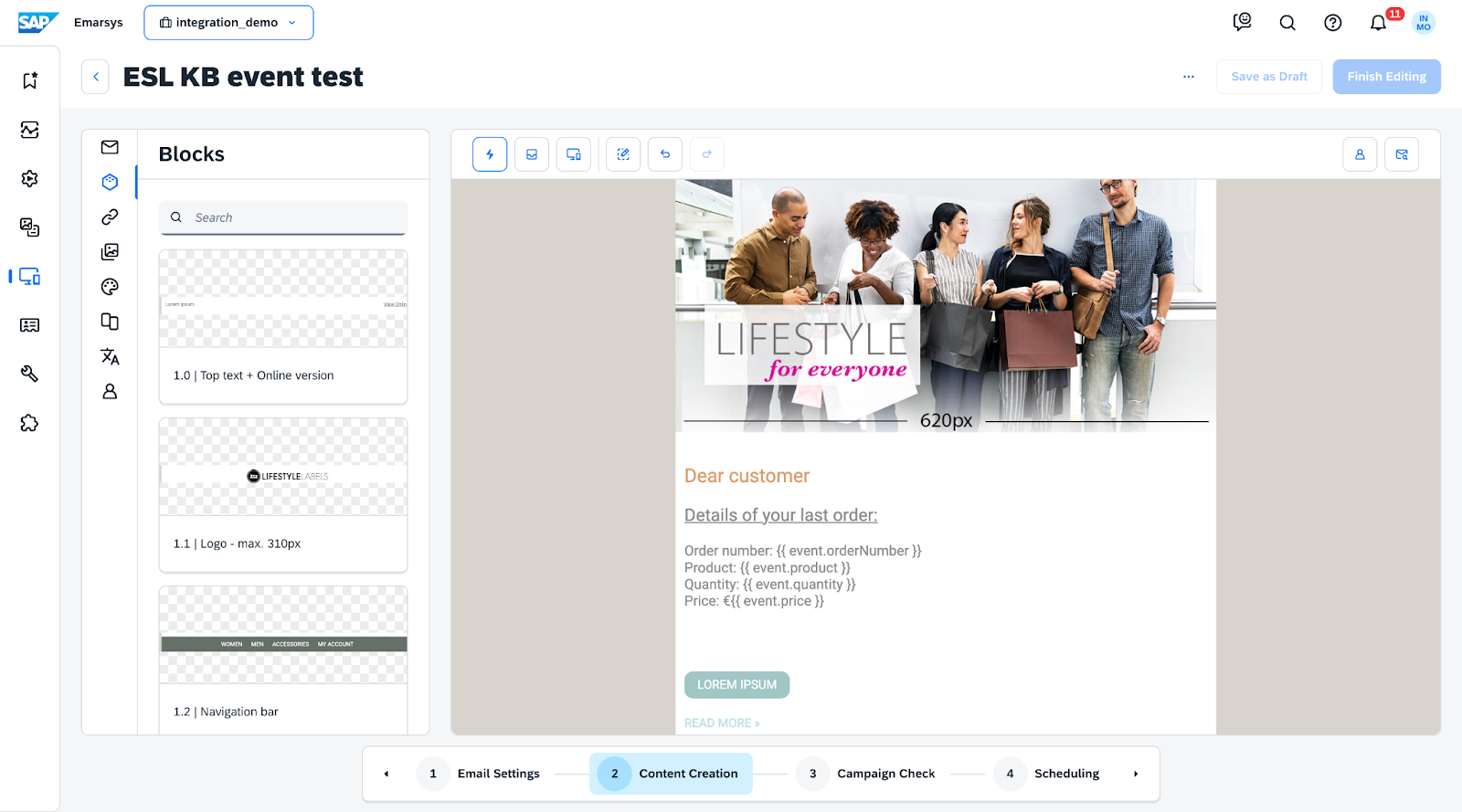

This is what you would see in the VCE:

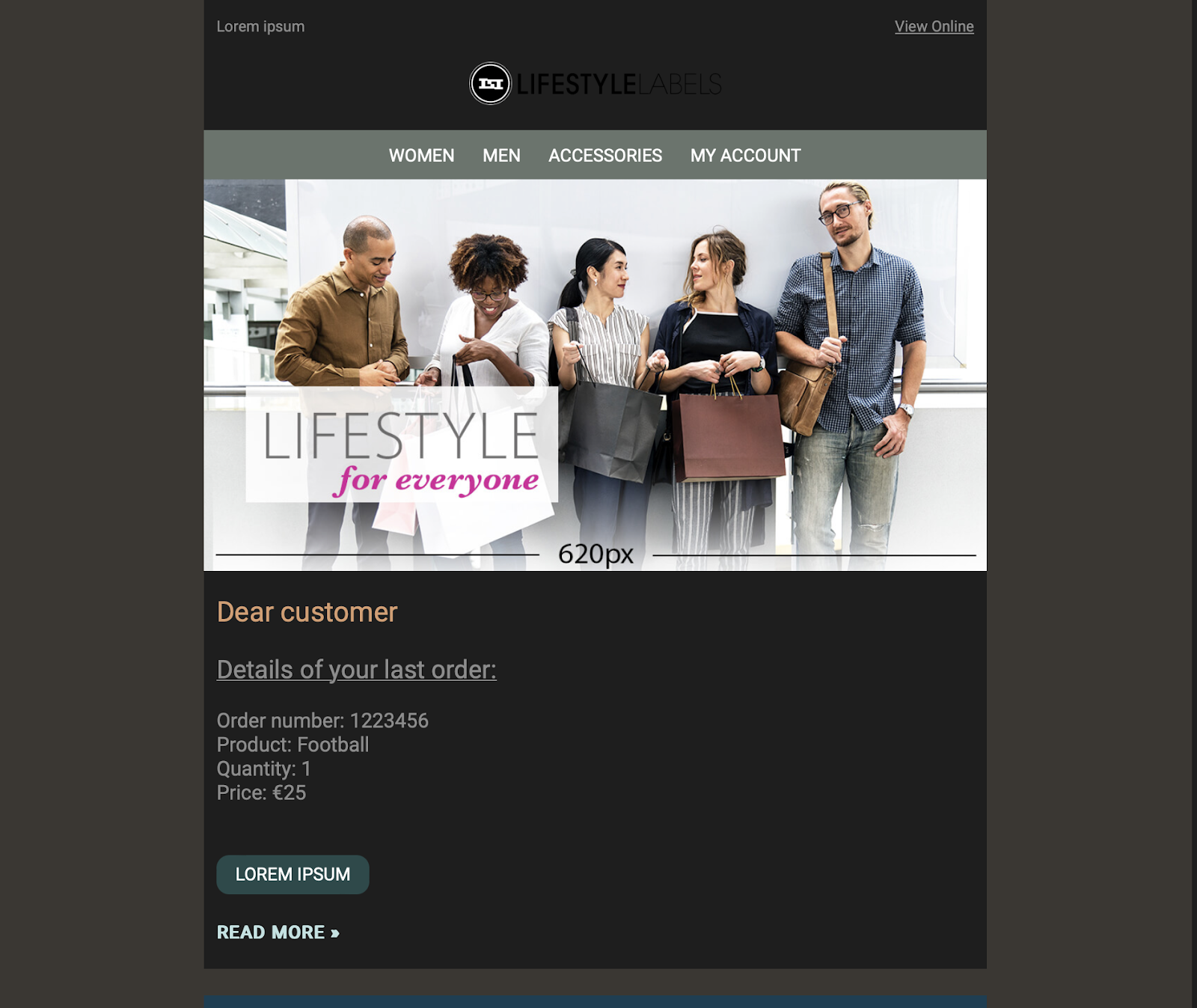

This would be the results for the first contact (the actual email your user sees):

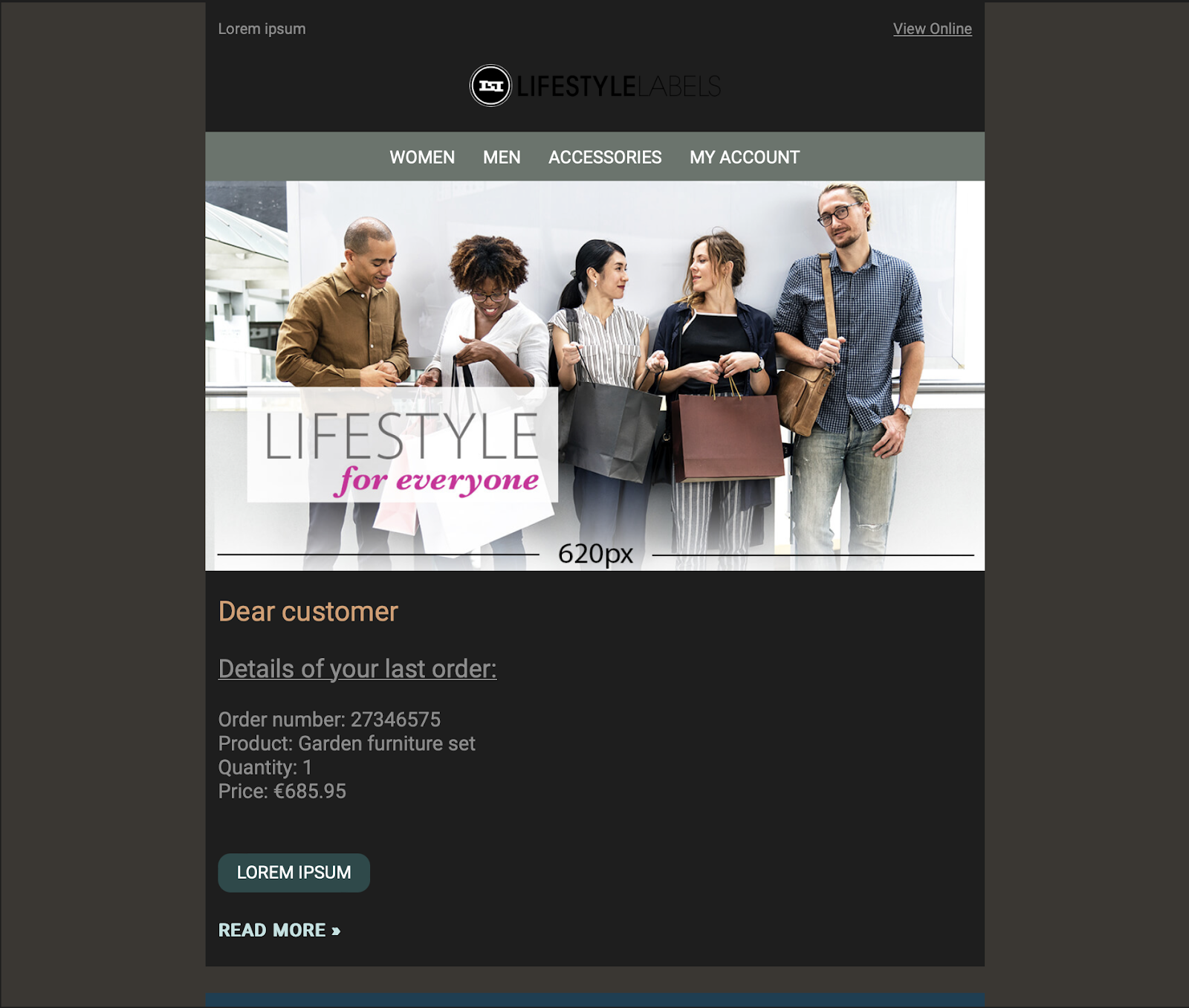

This would be the results for the second contact (the actual email your user sees):
